T-S-24

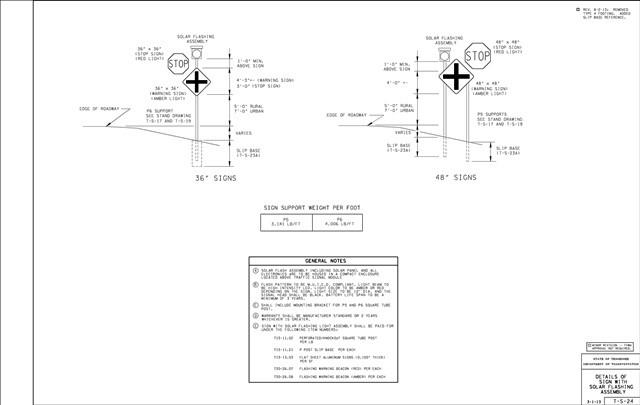

DETAILS OF SIGN WITH SOLAR FLASHING ASSEMBLY
(Click image to open PDF)
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| T-S-17 | STANDARD GROUND MOUNTED SIGN USING PERFORATED/KNOCKOUT SQUARE TUBE | FOR P5 AND P6 SUPPORT |
| T-S-19 | STANDARD STEEL SIGN SUPPORTS | FOR P5 AND P6 SUPPORT |
| T-S-23A | MULTI-DIRECTIONAL SLIP BASE BREAKAWAY SQUARE TUBE SIGN SUPPORT | FOR SLIP BASE |
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 713-11.02 | LB | PERFORATED/KNOCKOUT SQUARE TUBE POST | |
| 713-11.21 | EACH | P POST SLIP BASE | |
| 713-13.03 | S.F. | FLAT SHEET ALUMINUM SIGNS (0.100" THICK) | |
| 730-26.07 | EACH | FLASHING WARNING BEACON (DESCRIPTION) | |
| 730-26.08 | EACH | FLASHING WARNING BEACON (DESCRIPTION) |
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 03-01-2013 | 08-02-2013 |
