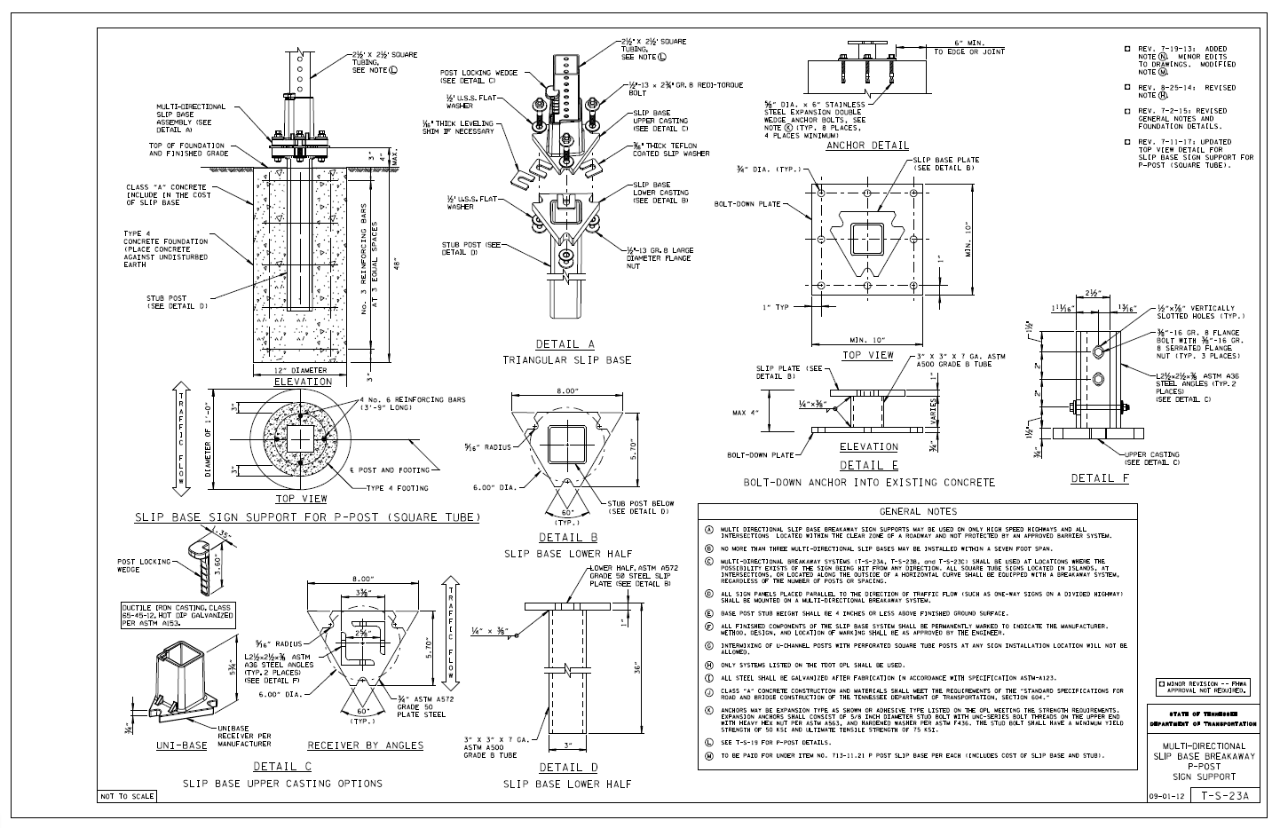

T-S-23A
MULTI-DIRECTIONAL SLIP BASE BREAKAWAY P-POST SIGN SUPPORT
(Click image to open PDF)
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| T-S-19 | STANDARD STEEL SIGN SUPPORTS | FOR P-POST DETAILS |
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 713-11.21 | EACH | P POST SLIP BASE | |
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 09-01-2012 | 07-19-2013 | 08-25-2014 | 07-02-2015 |
If you find any mistakes, missing information or have a question, contact:
Traffic Operations Division
Stephen K. Bryan, P.E., PTOE
1200 James K. Polk Building
Nashville, TN 37243
ph. 615-741-2152
Steve.Bryan@tn.gov
This Page Last Updated: April 22, 2021 at 4:07 PM
