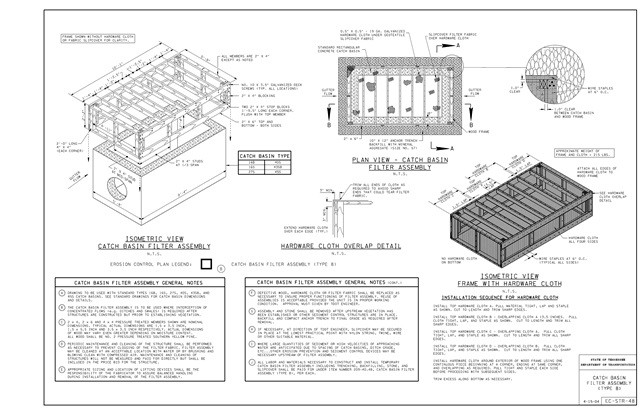

EC-STR-48
CATCH BASIN FILTER ASSEMBLY (TYPE 8)
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| D-CB-16S | STANDARD RECTANGULAR CONCRETE NO. 16 CATCH BASIN | SEE STANDARD DRAWINGS FOR CATCH BASIN DIMENSIONS AND DETAILS |
| D-CB-27S | STANDARD RECTANGULAR CONCRETE NO. 27 CATCH BASIN (FOR USE WITH 6" MOUNTABLE CURB) | SEE STANDARD DRAWINGS FOR CATCH BASIN DIMENSIONS AND DETAILS |
| D-CB-40S | STANDARD 4' X 8' RECTANGULAR CONCRETE NO. 40 CATCH BASIN | SEE STANDARD DRAWINGS FOR CATCH BASIN DIMENSIONS AND DETAILS |
| D-CB-43SB | STANDARD 8' X 4' RECTANGULAR CONCRETE NO. 43SB CATCH BASIN | SEE STANDARD DRAWINGS FOR CATCH BASIN DIMENSIONS AND DETAILS |
| D-CB-45S | STANDARD 8' X 4' RECTANGULAR CONCRETE NO. 45 CATCH BASIN (FOR USE UNDER CONCRETE MEDIAN BARRIER WALL) | SEE STANDARD DRAWINGS FOR CATCH BASIN DIMENSIONS AND DETAILS |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 209-40.48 | EACH | CATCH BASIN FILTER ASSEMBLY(TYPE 8) | |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 04-15-2004 |
