T-WZ-62

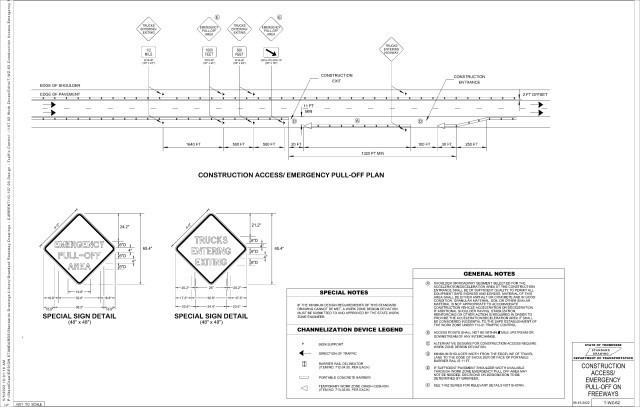

CONSTRUCTION ACCESS/EMERGENCY PULL-OFF ON FREEWAYS
(Click image to open PDF)
Latest Revision Note
XX/XX/20XX NEW STANDARD DRAWINGS
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| T-WZ SERIES | DESIGN - TRAFFIC CONTROL → WORK ZONES | FOR RELEVANT DETAILS NOT SHOWN |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION |
|---|---|---|
| 712-01 | LS | TRAFFIC CONTROL |
| 712-04.50 | EACH | BARRIER RAIL DELINEATOR |
| 713-02.60 | EACH | TEMPORARY WORK ZONE CRASH CUSHION |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 05-15-2022 |
