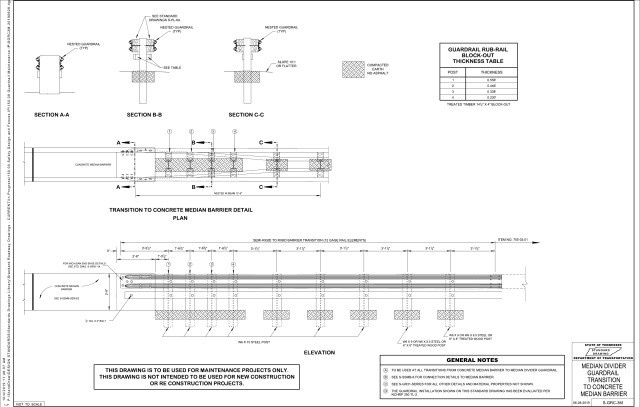

S-GRC-3M
MEDIAN DIVIDER GUARDRAIL TRANSITION TO CONCRETE MEDIAN BARRIER
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| S-GR31-SERIES | SAFETY DSIGN AND GUARDRAILS - GUARDRAIL DETAILS | FOR ALL OTHER DETAILS AND MATERIAL PROPERTIES NOT SHOWN |
| S-GR31-1A | GUARDRAIL AND BLOCK-OUT DETAILS | FOR STANDARD WOOD BLOCK-OUT AND MICHIGAN END SHOE DETAILS |
| S-PL-6A | SAFETY PLAN SAFETY HARDWARE PLACEMENT IN MEDIAN | SEE STANDARD DRAWING FOR DETAILS |
| S-SSMB-SERIES | SAFETY DSIGN AND GUARDRAILS - CONCRETE MEDIAN BARRIERS | FOR ALL OTHER DETAILS AND MATERIAL PROPERTIES NOT SHOWN |
| S-SSMB-6 | GUARDRAIL ATTACHMENT TO SINGLE SLOPE CONCRETE BARRIER WALL | FOR CONNECTION TO CONCRETE BARRIER WALLS |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 705-03.01 | L.F. | MEDIAN DIVIDER GUARDRAIL, WITH RUB-RAIL (TYPE 2) | |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 06-28-2019 |
